BX100 GAT

Tri-Power™
Manufacturer: Gates
Manufacturer part number: BX100
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 2 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$45.20

Product Details

Brand Name

Gates

Alternate Supplier #

90132100

Description

Built for superior performance on heavy-duty classical cross-section drives. The raw edge, Ethylene Elastomer construction and special notch design makes the Tri-Power belt especially suited for small diameter pulleys and back-side idler drives.

Features

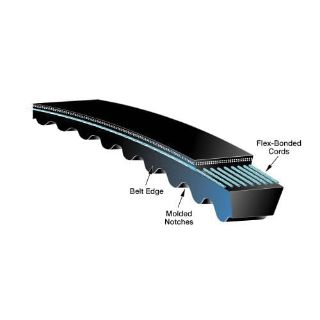

Belt edge is machined for even sheave groove contact, resulting in smoother running, less slip and wear. Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution and absorption of bending stress without cord deterioration. 15% capacity increase over wrapped belts. Notches molded into the belt during manufacturing increase flexibility, making this belt well suited for drives with smaller diameter sheaves. Suitable for all industrial applications, particularly where small or sub-minimal sheave diameters are required. Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

Specifications

Angle:40
Belt Back Side:Smooth
Belt Inside:Notched
Belt/Slab:Belt
Color:Black
Construcao:Bandless
Cord Material:Polyester
Country of Origin:US
Effective Length (in):102.787
Effective Length (mm):2611
GC Base Product:Tri-Power® Belts - BX Section
Harmonized Tariff Code:4010.39.1000
Material:Ethylene Elastomeric
Max Temp (°C):+121
Max Temp (F):+250
Min Temp (°C):-51
Min Temp (F):-70
Number of Ribs/Strands:1
OC (in):103.09
OC (mm):2618
Proposition 65:NO
Secao:BX
Sided:Single Sided
Static Conductive:Yes
Thickness (in):0.435
Thickness (mm):11
Top Width (in):0.624
Top Width (mm):16
Unitset (V80):No
