C1296 MAR

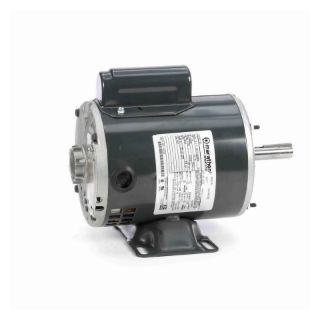

Picture of C1296 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
5KC35JN70
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

4-Pole Continuous-Duty

Description

Marathon® AC Motor, 4-Pole Continuous-Duty, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 0.25 hp, 115/208 to 230 VAC, 5.2 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, Open Drip-Proof Enclosure, 56C Frame, 0.625 in Dia x 1.88 in L Shaft, CW/CCW Rotation, 1.35 Service Factor, Ball Bearing, C-Face Footless Mounting, 40 deg C, Insulation Class: Class B, Steel, 9.61 in L Dimensions

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:5.2 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Country of Origin:MX
Dimensions:9.61 in L
Enclosure Type:Open Drip-Proof
Frame:56C
Frequency Rating:60 Hz
Horsepower:0.25 hp
Insulation Class:Class B
Material:Steel
Mounting Type:C-Face Footless
Number of Speeds:1
Phase:1 ph
Rotation:CW/CCW
Service Factor:1.35
Shaft Size:0.625 in Dia x 1.88 in L
Speed:1725 rpm
Temperature Rating:40 deg C
Voltage Rating:115/208 to 230 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
1/4 HP
Speed Rating
1725
Type
Capacitor Start Induction Run
Voltage Rating
208-230
