C16160 MSG

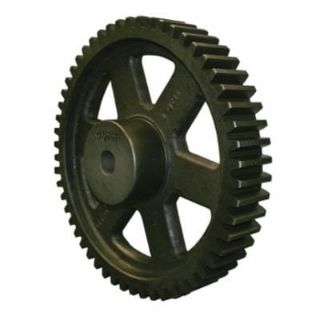

Picture of C16160 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
C16160
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$215.41 / EA

Description

Brand Name

Martin

Type

External Tooth Reborable

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, External Tooth Reborable, 0.625 to 1.688 in Bore Dia, 10-1/8 in Outside Dia, 160 Teeth, 16 Diametral Pitch, 1 in, 1/2 in Face Width, Type B3, 2.735 in Hub Dia, 3/4 in Hub Projection, 1-1/4 in Overall Length, 14.5 deg Pressure Angle, Cast Iron

Features

  • Precise machining and processes ensure consistent finish and high quality
  • Commercial Class Gear. AGMA 6-8

Specifications

Bore Diameter:0.625 to 1.688 in
Country of Origin:US
Diametral Pitch:16
Face Width:1/2 in
Hub Diameter:2.735 in
Hub Projection:3/4 in
Hub Type:Type B3
Material:Cast Iron
Number of Teeth:160
Outside Diameter:10-1/8 in
Overall Length:1-1/4 in
Pitch Diameter:1 in
Pressure Angle:14.5 deg
