C19M10-40-020 PRS

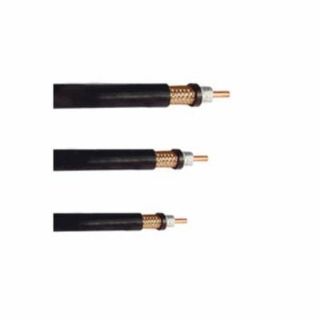

Picture of C19M10-40-020 PRS
Actual Product May Vary From Image

Product Details

Manufacturer:
Prosoft Technology
Manufacturer part number:
C19M10-40-020
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$110.00 / EA

Description

Brand Name

ProSoft Technology

Type

Type LMR® 195

Description

ProSoft Technology supplies cables that provide the lowest attenuation and are pre-cut and assembled with connectors at the factory to ensure ultimate reliability and customer satisfaction.
ProSoft Technology Conversion Cable, Type LMR® 195, Series: C19M, 1000 VDC, 20 ft Length, RP-SMA Plug End Style, Polyethylene Jacket, Black Jacket, -40 to 185 deg F

Application

For jumper assemblies in wireless communication systems and short antenna feed runs

Features

  • The LMR®-195 cable is substantially more flexible than RG142 and very comparable to RG58 flexible
  • Achieved through the use of high velocity gas injected closed cell foam dielectric, and bonded aluminum tape outer conductor
  • LMR®-195 boasts lower loss than other RG58/RG142 type cables
  • The bonded aluminum tape outer conductor is overlapped to provide 100% coverage, resulting in 0.9 dB RF shielding
  • The intimately bonded structure and foam dielectric of LMR® cables provide excellent phase stability over temperature and with bending
  • The high velocity dielectric results in superior phase stability as compared with RG58 and RG142 solid dielectric cables
  • 11.2 dB/100 ft attenuation at 915 MHz
  • 18.8 dB/100 ft attenuation at 2450 MHz
  • 29.9 dB/100 ft attenuation at 5800 MHz
  • LMR® 195 type conversion cable with reverse polarity, right angle RP SMA male type connector on radio side and standard N male plug connector on antenna side
  • Converts SMA connector type to N plug type and normally attaches to enclosure side bulkhead lightning protector
  • RP-SMA plug to N plug connection

Specifications

End Style:RP-SMA Plug
Jacket Color:Black
Jacket Material:Polyethylene
Length:20 ft
Series:C19M
Temperature Rating:-40 to 185 deg F
Voltage Rating:1000 VDC
