C1F007LES HMD

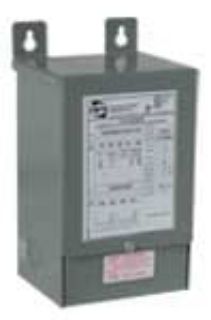

Picture of C1F007LES HMD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hammond Power Solutions
Manufacturer part number:
C1F007LES
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,252.28 / EA

Description

Brand Name

HPS

Type

Commercial Potted

Description

HPS Fortress is an innovative design that provides the ideal solution for commercial applications where quality, ease of installation, and low cost are key. All units are encapsulated with electrical grade silica sand and resin compounds, which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration.
HPS Fortress™ Distribution Transformer, Commercial Potted, 240/480 VAC Primary, 120/240 VAC Secondary, 7.5 kVA, 60 Hz, 1 ph, Lead Wire/Tab, Wall Mount, NQ6A-N3R Indoor/Outdoor, 9.25 in L x 12.25 in W x 17.63 in H

Application

Shopping Centers, Schools, Sports Complexes, Commercial, Lighting, Wastewater and Light Industrial Loads

Standards

UL Listed | CSA Certified | RoHS Compliant

Features

  • Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
  • Totally enclosed to seal out moisture and airborne contaminants
  • Rear and side entry conduit knockouts into an easily accessible and roomy wiring compartment
  • Installation made quick and easy with keyhole mounting slots and supplied wall mounting template
  • NEMA 4/12 enclosure rating available when optional gasket kit is installed
  • NEMA 3R enclosure meets or exceeds listing criteria including NEMA and ANSI standards for indoor and outdoor applications
  • 240 x 480 V primary volt
  • All welded core construction made with high quality, high permeability silicon steel laminations
  • Copper or aluminum windings, with terminations brazed, welded or bolted coil
  • High and low voltage lead wires or copper tabs
  • ANSI 61 UL 50 gray enclosure finish

Specifications

Connection Type:Lead Wire/Tab
Dimensions:9.25 in L x 12.25 in W x 17.63 in H
Enclosure Type:NQ6A-N3R Indoor/Outdoor
Frequency Rating:60 Hz
Mounting Type:Wall
Phase:1 ph
Power Rating:7.5 kVA
Primary Voltage:240/480 VAC
Secondary Voltage:120/240 VAC
