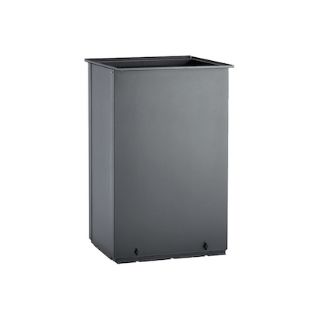

C2VED08I3866G1 PAN

Name: C2VED08I3866G1 PAN
Brand: Panduit
SKU: C2VED08I3866G1 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

C2VED08I3866G1

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Description

Vertical exhaust duct shall channel heat from server exhaust directly to the data center return plenum. The system shall increase CRAH unit cooling efficiency and lower operating expenses. The vertical exhaust duct shall leverage existing server fans to direct the flow of hot exhaust air, reducing energy costs and noise levels. The system shall be passive, containing no moving parts resulting in a more energy efficient solution than comparable forced air options. The vertical exhaust duct shall address high heat loads per cabinet to enable dense server applications and eliminate data center hot spots. The vertical exhaust duct shall be modular, capable of being added without disrupting existing in-cabinet equipment and cabling to enable a migration path.

Panduit®, C2VED08I3866G1, Vertical Exhaust Duct, Steel, Gray, 30.5 in W x 17.9 in D x 66 in H Dimensions

Application

For 800 mm W N-Type and S-Type cabinet

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant

Features

Transfers heat load directly to return plenum to reduce the number of CRAH units
Lowers energy costs up to 40% and capital construction expenditures for increased network reliability and lowest cost of ownership
Prevents hot spots and allows installation of high density server cabinets close together in new builds or existing data centers
Reduces the need for extra real estate and additional CRAH units for increased data center cooling
Works with leading server suppliers (HP, IBM, Dell, Sun) via uniform and proper air flow distribution within servers
Verified interoperability, minimizes risk of overheating for increased network reliability
Contains no moving parts to passively direct the heated air out of the data center
Eliminates acoustical noise and failure points for increased network reliability
Reduces the need for flow balancing in raised floor and return plenums
Minimizes local hot spots within the data center and improves CPU/network reliability
Infinitely adjustable within specified range of vertical exhaust system
Allows for variable ceiling heights and ease of installation

Includes

(2) Bottom Side Panel, (2) Top Side Panel, (1) Top Front Panel, (1) Top Rear Panel, (2) Bottom Front and Rear Panel, (2) Horizontal Adjustment Bracket, (1) Hardware Kit

Specifications

Color:	Gray
Country of Origin:	US
Dimensions:	30.5 in W x 17.9 in D x 66 in H
Material:	Steel
