C320C6W HWD

Name: C320C6W HWD
Brand: Hubbell Wiring Device-Kellems
SKU: C320C6W HWD
Availability: OutOfStock

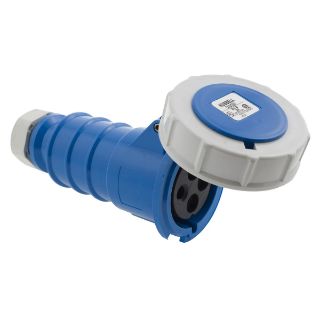

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

C320C6W

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Female Heavy Duty Standard Watertight Cord Mount

Description

The C-Series devices are designed and built to conform to IEC 309-2, the worldwide pin and sleeve standard established by the International Electrotechnical Commission. This is a uniform system that makes the mating of plugs and receptacles of different voltages and current ratings physically impossible as required by the National Electrical Code.

Wiring Device-Kellems Pin and Sleeve Connector, Female Heavy Duty Standard Watertight Cord Mount, Series: C Series, 250 VAC, 20 A, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 5.97 in L x 3 in W

Application

High Ampacity Connection Applications

Standards

RoHS Compliant | UL 498 | UL 1682 | UL 1686 | VDE Approved | CE Certified | CSA C22.2 File No. 182.1 | IEC 309-1/309-2

Specifications

Amperage Rating:	20 A
Color:	Blue
Country of Origin:	DE
Dimensions:	5.97 in L x 3 in W
Enclosure:	IP67
Grade:	Industrial
Material:	Composite
Number of Poles:	2
Number of Wires:	3
Series:	C Series
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	250 VAC
