Actual Product May Vary From Image

CADIN1IG-S PAN

Name: CADIN1IG-S PAN
Brand: Panduit
SKU: CADIN1IG-S PAN
Price: 40.82 USD
Availability: InStock

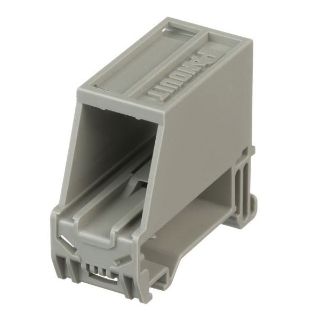

Panduit® CADIN1IG-S Rail Mount Adapter, Polycarbonate, International Gray

Manufacturer: Panduit

Manufacturer part number: CADIN1IG-S

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
9	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$40.82

Qty:

Product Details

Brand Name

Panduit®

Description

Mini-Com® DIN shielded Rail Mount Adapter mounts to standard 35 mm DIN rail and accepts any single port Mini-Com® module, international gray. Includes a label and label cover. Mini-Com® DIN shielded Rail Mount Adapter shall accept any single module space Mini-Com® module.

Panduit®, CADIN1IG-S, Rail Mount Adapter, 19 mm W x 48 mm D x 40.7 mm H Size, DIN Rail Mounting, For Use With: 35 mm DIN Rail, Polycarbonate, International Gray

Application

For any environment where DIN rails are located

Standards

ARRA Compliant | Buy American Act Compliant | EN 50022 | EN 60715 | RoHS Compliant | TH 35-7.5 | UL 1863 | UL 94-V0 Flammability Rated

Features

Accepts all single Mini-Com® modules, which snap in and out for easy moves, adds and change
Includes label pocket with label and cover to clearly identify the port for ease of identification, maintenance and moves, adds and changes
Compact size enables high component density on valuable DIN rail real estate
No custom or specialized tools required for installation or removal
Shielded grounding bar component creates an electrical bond between shielded jack and ground

Includes

Plastic Adapter, Label and Label Cover

Specifications

Color:	International Gray
Country of Origin:	CR
Material:	Polycarbonate
Mounting Type:	DIN Rail
Size:	0.75 in W x 1.89 in D x 1.6 in H
Suitable For Use With:	35 mm DIN Rail
