CB-0812-12 ISO

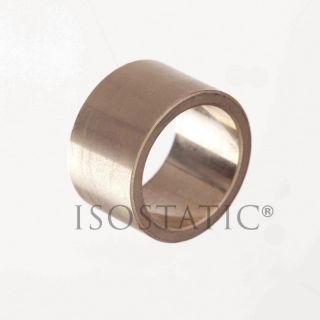

ISOSTATIC™ Century® 104076 Round Bore Sleeve Bearing, 1/2 in Dia Bore, 3/4 in OD, 1-1/2 in W
Manufacturer: Isostatic
Manufacturer part number: 104076
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$9.76

Product Details

Brand Name

ISOSTATIC™

Type

Round Bore

Description

ISOSTATIC™ Century® Sleeve Bearing, Round Bore, 1/2 in Bore, 3/4 in OD, 1-1/2 in Width, -40 to 450 deg F, 3000 psi Maximum, 750 sfpm Maximum Velocity, 75000 psi/sq-ft/min Maximum PV, SAE 660 Cast Bronze Bearing

Standards

ASTM B505 | QOC-390B Type III B144-52-3B | REACH Compliant | PROP65: This product can expose you to chemicals including lead which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65WARNINGS.ca.gov

Features

  • Standard stock products
  • SAE 660/CA 932 copper 83%, tin 7%, lead 7% and zinc 3%
  • Non-porous, highly dense grain structure for long life
  • Offers good hardness, strength and wear resistance, excellent anti-frictional characteristics
  • Tensile strength of 35000 psi, yield strength of 27000 psi and brinell hardness of 72
  • Ideal for heavy loads at moderate speeds or light loads at high speeds
  • Products made with excess material to finish to stated nominal dimensions

Specifications

Bearing Material:SAE 660 Cast Bronze
Bore Diameter:1/2 in
Country of Origin:US
Maximum Pressure:3000 psi
Maximum PV Rating:75000 psi/sq-ft/min
Maximum Velocity:750 sfpm
Outside Diameter:3/4 in
Temperature Rating:-40 to 450 deg F
Width:1-1/2 in
