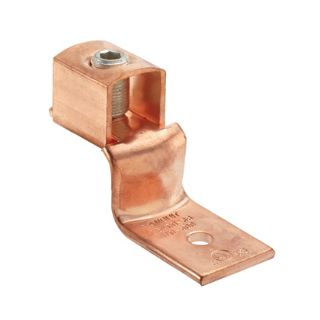

CB175-38-QY PAN

Name: CB175-38-QY PAN
Brand: Panduit
SKU: CB175-38-QY PAN
Price: 12.35 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

CB175-38-QY

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$12.35 / EA

Description

Brand Name

Panduit®

Type

1-Barrel

Description

Panduit®, CB175-38-QY, Mechanical Lug Connector, Type CB, Stranded Bare Copper Conductor, 4 to 3/0 AWG Conductor, 3/8 in Stud, 1 Bolt Holes, 0.75 in W x 0.12 in THK Tongue, Offset Floating Tongue, 600 VAC, Specifications: 1-Barrel, 175 A, 3/16 in Hex Key, 0.72 in L Collar, 90 deg C, 2.2 in L Dimensions

Application

For stranded copper code conductors

Standards

Features

Made from high strength electrolytic copper with steel screw to provide premium electrical and mechanical performance
Wide wire range-taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel set screw provides high strength, durable electrical contact between conductor and connector
Internal pressure bar and V-bottom collar provide uniform clamping force on conductor to assure positive contact between conductor and connector
Range taking, high strength copper, internal pressure bar, v-collar

Specifications

Conductor Size:	4 to 3/0 AWG
Conductor Type:	Stranded Bare Copper
Country of Origin:	IN
Dimensions:	2.2 in L
Finish:	Bare
Material:	Copper
Number of Bolt Holes:	1
Series:	CB Series
Specifications:	1-Barrel, 175 A, 3/16 in Hex Key, 0.72 in L Collar
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	0.75 in W x 0.12 in THK
Tongue Type:	Offset Floating
Voltage Rating:	600 VAC
