CCB4-Z MSG

Name: CCB4-Z MSG
Brand: Martin Sprocket & Gear
SKU: CCB4-Z MSG
Price: 6.97 USD
Availability: OutOfStock

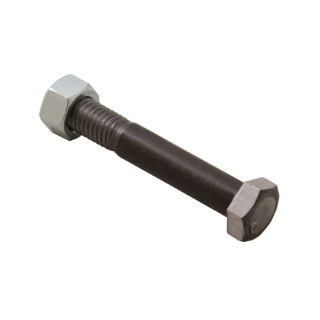

Martin CCB4-Z Standard Conveyor Coupling Bolt With Zinc Plated Locknut, For Use With 2 in Coupling Shaft, 2-7/8 in Outside Pipe Diameter, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: CCB4-Z

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$6.97

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

Conveyor coupling bolts are manufactured from special analysis high-torque steel. The close tolerance minimizes wear and maintenance. Designed with short thread length and close tolerance to fit distinctively in conveyor screws. Lock nuts are furnished with each bolt.

Martin Conveyor Coupling Bolt, Standard, For Use With: 2 in Coupling Shaft, 2-7/8 in Outside Pipe Diameter, Steel, 5/8 in Dia x 3-5/8 in L

Features

Grade 2 bolts with no tread within pipe

Specifications

Country of Origin:	US
Dimensions:	5/8 in Dia x 3-5/8 in L
Material:	Steel
Specifications:	2-7/8 in Outside Pipe Diameter
Suitable For Use With:	2 in Coupling Shaft
