CD6202 BLD

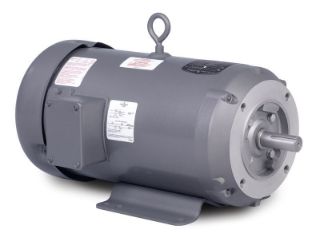

Picture of CD6202 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CD6202
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,445.51 / EA

Description

Brand Name

Baldor-Reliance

Type

DC Motors

Standards

UR; CSA

Features

2HP,1750RPM,DC,184C,3646D,TEFC,F1

Specifications

Ambient Temp:40 °C
Armature Current:9.5 A
Armature Inertia:38.77
Armature Voltage:180
Base:Rigid
Bearing:6206
Bearing ODE:6205
Commutators:2/BP5125A01
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Field Voltage:200/100
Frame:182C
Horsepower:2
Mounting:F1
Number of Wires:2 @ 12 AWG; 4 @ 18 AWG
Rotation:Reversible
Service Factor:1
Shaft Size:0.875 in
Speed Rating:1,750

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
184C
Horsepower
2 HP
Speed Rating
1750 RPM
Type
Wound Field DC Motor
Voltage
180
