CDP3410-V12 BLD

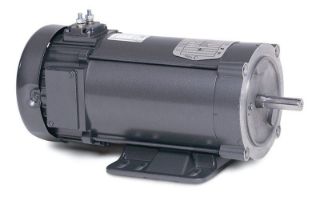

Picture of CDP3410-V12 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CDP3410-V12
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,079.86 / EA

Description

Brand Name

Baldor-Reliance

Type

DC Motors

Standards

CSA; UR

Features

.25HP,1800RPM,DC,56C,3416P,TENV,F1

Specifications

Ambient Temp:40 °C
Armature Current:22.5 A
Armature Inertia:5.51
Armature Voltage:12
Base:Rigid
Bearing:6203
Bearing ODE:6203
Commutators:2/BP5104BV01
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:56C
Horsepower:0.25
Mounting:F1
Number of Wires:2 @ 14 AWG
Rotation:Reversible
Service Factor:1
Shaft Size:0.625 in
Speed Rating:1,800

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TENV
Frame
56C
Horsepower
1/4 HP
Speed Rating
1800 RPM
Type
Permanent Magnet DC Motor
Voltage
12
