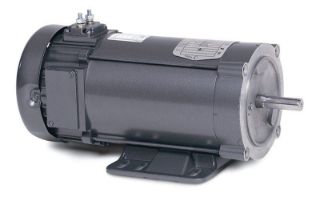

Picture of CDP3430-V12 BLD
Actual Product May Vary From Image

CDP3430-V12 BLD

.5HP,1800RPM,DC,56C,3420P,TENV,12V
Manufacturer: Baldor Reliance
Manufacturer part number: CDP3430-V12
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,107.28

Product Details

Brand Name

Baldor-Reliance

Type

DC Motors

Standards

CSA; UR

Features

.5HP,1800RPM,DC,56C,3420P,TENV,12V

Specifications

Ambient Temp:40 °C
Armature Current:40.0 A
Armature Inertia:6.887
Armature Voltage:12
Base:Rigid
Bearing:6203
Bearing ODE:6203
Commutators:2/BP5104BV01
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:56C
Horsepower:0.5
Mounting:F3
Number of Wires:2 @ 10 AWG
Rotation:Reversible
Service Factor:1
Shaft Size:0.625 in
Speed Rating:1,800

Resources

Spec SheetWarranty
