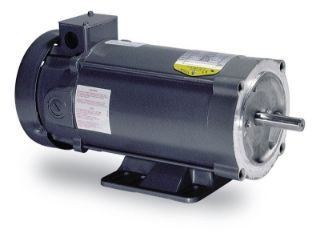

Picture of CDP3436 BLD
Actual Product May Vary From Image

CDP3436 BLD

.75HP,1750RPM,DC,56C,3428P,TEFC,F1,N
Manufacturer: Baldor Reliance
Manufacturer part number: CDP3436
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,022.86

Product Details

Brand Name

Baldor-Reliance

Type

DC Motors

Standards

CE; CSA; UR

Features

.75HP,1750RPM,DC,56C,3424P,TEFC,F1,N

Specifications

Ambient Temp:40 °C
Armature Current:3.7 A
Armature Inertia:9.365
Armature Voltage:180
Base:Rigid
Bearing:6203
Bearing ODE:6203
Commutators:2/BP5000AW14
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Environmental Conditions:RoHS Compliant
Frame:56C
Horsepower:0.75
Mounting:F1
Number of Wires:2 @ 14 AWG
Rotation:Reversible
Service Factor:1
Shaft Size:0.625 in
Speed Rating:1,750

Resources

Spec SheetWarranty
