CDP3603 BLD

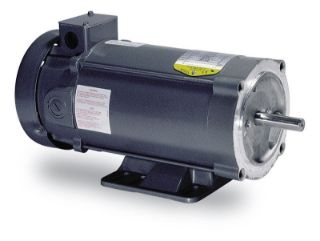

Picture of CDP3603 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CDP3603
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,755.41 / EA

Description

Brand Name

Baldor-Reliance

Type

DC Motors

Standards

CE; CSA; UR

Features

3HP,1750RPM,DC,184TC,3649P,TEFC,F1

Specifications

Ambient Temp:40 °C
Armature Current:14.0 A
Armature Inertia:107.11
Armature Voltage:180
Base:Rigid
Bearing:6206
Bearing ODE:6206
Commutators:2/BP5031A01
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:182TC
Horsepower:3
Mounting:F1
Number of Wires:2 @ 12 AWG
Rotation:Reversible
Service Factor:1
Shaft Size:1.125 in
Speed Rating:1,750

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TEFC
Frame
184TC
Horsepower
3 HP
Speed Rating
1800 RPM
Type
Permanent Magnet DC Motor
Voltage
180
