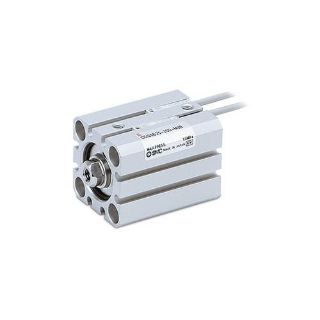

CDQSB16-5D SMC

Name: CDQSB16-5D SMC
Brand: SMC
SKU: CDQSB16-5D SMC
Price: 28.25 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

SMC

Manufacturer part number:

CDQSB16-5D

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$28.25 / EA

Description

Brand Name

SMC®

Type

Standard

Description

SMC®, CDQSB16-5D, Cylinder, Standard, Series: CQS, 16 mm Cylinder Bore, 5 mm Stroke Length, Double Acting Cylinder Action, M5 x 0.8 Port, 1.0 mpa Pressure, -10 to 60 deg C, Rubber Cushion, Through Hole Mounting, Steel, 1.14 in H x 1.14 in W x 1.20 in L Dimensions

Application

For those small bore cylinder applications where saving space is a concern

Standards

RoHS Compliant

Features

Standard double acting single rod
Strokes from 5mm through 300mm depending upon bore size
Mounts are through hole/both ends tapped, foot, front or rear flanges, double clevis
Variety of switches and a variety of lead wire lengths

Specifications

Country of Origin:	US
Cushion Type:	Rubber
Cylinder Action:	Double Acting
Cylinder Bore Size:	16 mm
Dimensions:	1.14 in H x 1.14 in W x 1.20 in L
Material:	Steel
Mounting Type:	Through Hole
Port Size:	M5 x 0.8
Pressure Rating:	1.0 mpa
Series:	CQS
Stroke Length:	5 mm
Temperature Rating:	-10 to 60 deg C
