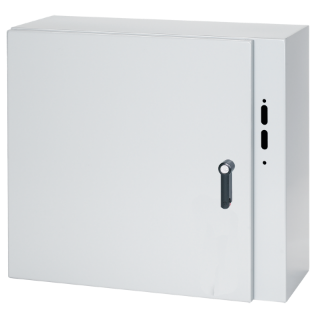

CDSC20228SS HOF

Disconnect Type 4X Enclosure
Manufacturer: nVent HOFFMAN
Manufacturer part number: CDSC20228SS
Availability: Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,884.00

Product Details

Brand Name

nVent HOFFMAN

Type

Stainless Steel Wall Mounted Industrial Disconnect Enclosures

Description

Concept Wallmount Disconnect Enclosure 3Pt Latch, 20x22x8, Brushed, SS304

Application

Controls and Drives; Arc Flash Safety; Corrosive Environments

Specifications

Color:Unpainted
Concept Panel:CP2020
Conductive Panel:CP2020G
Country of Origin:US
Depth:8
Finish:Brushed #4
Height:20 in
IP Rating:IP66
Material:304 Stainless Steel
Modification Services:Yes
Mounting (Imperial):18.50 x 20.50 in
Mounting (Metric):470 x 521 mm
NEMA Rating:12 Indoor, dust-resistant
Panel Size (Imperial):18.20 x 18.20 in
Panel Size (Metric):462 x 462 mm
Product Family:Concept
Protection Rating:NEMA Type 12
Size:20.00x22.00x8.00 in
Stainless Steel Type:304
Sub Brand:Concept
Thickness (Imperial):14 ga
Thickness (Metric):1.98 mm
Type Number:Type 3R
Weight (Imperial):38.5 lb
Width:22
