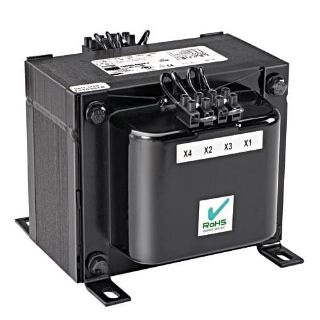

CE1500TH SHD

1.5KVA INTL CE-RATED XFMR TH
Manufacturer: SolaHD (Emerson)
Manufacturer part number: CE1500TH
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$806.74

Product Details

Brand Name

SolaHD

Type

ICE International Series: 750-2,000 VA.

Description

Features:130 DEG C Insulation System, Standard:UL (CANADA AND US), CE, IEC, ANSI, Wattage:1500VA, Input Voltage:240/415/480, 230/400/460, 220/380/440V AC, Output Voltage:120/240, 115/230, 110/220V AC, Frequency: 50/60 HZ

Application

Industrial Automation and Control Equipment Power PLCs, Machine Tools, Robotics, Semiconductor Fabrication Equipment

Standards

cULus Listed: E77014, UL 506, CSA C22.2 No.66 IEC 61558-1, Iec 61558-2-2, RoHS Compliant

Features

IP20 touch-proof terminals, Copper windings, Epoxy encapsulated for cooler operation and increased reliability, 50/60 Hz frequency, 80 DEGC/176 DEGF Rise, 130 DEGC/266 DEGF insulation system for harsh, heavy duty applications, Meets or exceeds electrical requirements of NEMA, ANSI and IEC

Specifications

Country of Origin:US
Enclosure:IP20
Frequency Rating:50/60 Hz
Height:5.63 in
Insulation Class:130 DEG
KVA Rating:1.5
Length:6 in
Mounting:Mounting Feet
Number of Phases:1
Power Factor:50
Primary Voltage:240/415/480 Volt Primary
Secondary Voltage:120/240 Volt Secondary
Wattage:1,000 W
Width:6.38 in
