CEM3709T BLD

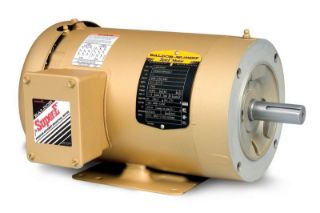

Picture of CEM3709T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CEM3709T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,249.13 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

7.5HP,3520RPM,3PH,60HZ,213TC,3728M,TEFC

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:213
Frequency Rating:60 Hz
Full Load Current:19.4 A; 18.0 A; 9.0 A
Horsepower:7.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:A
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:84
Rotation:Reversible
Service Factor:1.15
Speed Rating:3,520 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TEFC
Frame
215TC
Frequency Rating
60 Hz
Horsepower
7 1/2 HP
Speed Rating
3600 RPM
Type
General Purpose Motor
Voltage Rating
208-230/460 V
