CEM4104T BLD

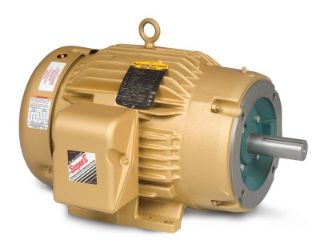

Picture of CEM4104T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CEM4104T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$7,168.94 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

30HP,1760RPM,3PH,60HZ,286TC,1056M,TEFC,F

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:286
Frequency Rating:60 Hz
Full Load Current:38.0 A; 76.0 A
Horsepower:30.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:A
NEMA Nominal Efficincy:93.60%
Phase:Three Phase
Power Factor:8
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,760 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TEFC
Frame
286TC
Frequency Rating
60 Hz
Horsepower
30 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
230/460 V
