CEM7034T-I BLD

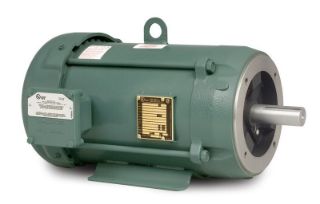

Picture of CEM7034T-I BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CEM7034T-I
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose Hazardous Location

Features

1.5//1HP,1760//1460RPM,3PH,60//50HZ,145T

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:XPFC
Frame:145
Frequency Rating:60 Hz; 50 Hz
Full Load Current:1.9 A; 2.2 A; 3.8 A; 4.4 A
Horsepower:1.500 hp; 1.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:86.50%
Phase:Three Phase
Power Factor:73
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,760 rpm; 1,460 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 380 V; 230 V; 190 V

Resources

Spec SheetWarranty

Products Specifications

Application
Severe Duty
Brand Name
Baldor
Enclosure
XPFC
Frame
145TC
Frequency Rating
50/60 Hz
Horsepower
1 HP
Speed Rating
1800 RPM
Type
Explosion Proof Motor
Voltage Rating
190/230/380/460
