CEM7058T-I BLD

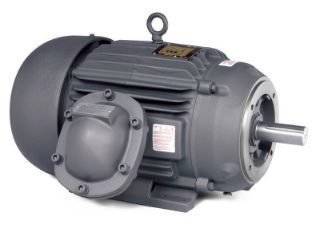

Picture of CEM7058T-I BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CEM7058T-I
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose Hazardous Location

Features

25//20HP,1780//1470RPM,3PH,60//50HZ,284T

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:XPFC
Frame:284
Frequency Rating:60 Hz; 50 Hz
Full Load Current:29.5 A; 30.5 A; 59.0 A; 61.0 A
Horsepower:25.000 hp; 20.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:93.60%
Phase:Three Phase
Power Factor:82
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,780 rpm; 1,470 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 380 V; 230 V; 190 V

Resources

Spec SheetWarranty

Products Specifications

Application
Severe Duty
Brand Name
Baldor
Enclosure
XPFC
Frame
284TC
Frequency Rating
50/60 Hz
Horsepower
25 HP
Speed Rating
1800 RPM
Type
Explosion Proof Motor
Voltage Rating
190/230/380/460
