CEM7170T-I BLD

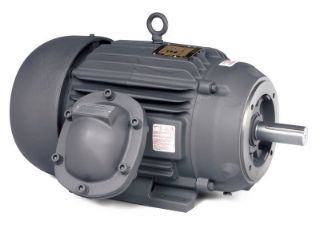

Picture of CEM7170T-I BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CEM7170T-I
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose Hazardous Location

Features

10//7.5HP,1765//1465RPM,3PH,60//50HZ,215

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:XPFC
Frame:215
Frequency Rating:60 Hz; 50 Hz
Full Load Current:11.5 A; 12.3 A; 23.0 A; 24.6 A
Horsepower:10.000 hp; 7.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:A
NEMA Nominal Efficincy:92.40%
Phase:Three Phase
Power Factor:81
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,765 rpm; 1,465 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 380 V; 230 V; 190 V

Resources

Spec SheetWarranty

Products Specifications

Application
Severe Duty
Brand Name
Baldor
Enclosure
XPFC
Frame
215TC
Frequency Rating
50/60 Hz
Horsepower
7 1/2 HP
Speed Rating
1800 RPM
Type
Explosion Proof Motor
Voltage Rating
190/230/380/460
