CESD3034 APN

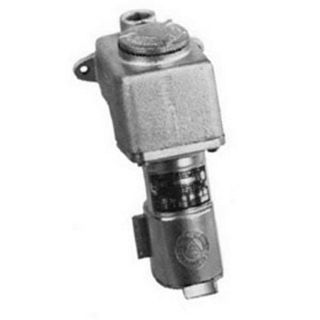

Picture of CESD3034 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
CESD-3034
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,593.06 / EA

Description

Brand Name

Appleton®

Type

3-Phase Feed Through Grounding Style 2

Description

CES and CESD Factory Sealed 30 and 60 A Pin and Sleeve Receptacles offer explosionproof protection for stationary or portable equipment used in hazardous locations. The Slide-Lok™ feature enforces a three-stage power insertion process to prevent unintended power up or accidental disconnect. Factory sealed and constructed of triple coated malleable iron with copperfree aluminum cover, these receptacles are designed for rugged and reliable performance.
Appleton® Explosionproof Receptacle, 3-Phase Feed Through Grounding Style 2, Series: CESD, 125 to 250 VAC, 30 A, 3 hp, 4 Pole, 3 Wires, NEMA 3R NEMA Rating, Pressure Wire Terminal, Copper Free Aluminum, 8.69 in H x 5.13 in W x 6-3/4 in D Dimensions

Application

CPH Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor-Generator Sets, Air Conditioners, Compressors and Pumps Applications

Standards

Class I, Div 1 and 2, Groups D | UL 1010 (UL 1203), 894, 1682, 1686 | UL File No. E10784 | CSA C22 No. 30/159/182.1

Features

  • Shell and extra pole grounding style 2
  • Delayed action safety construction with Slide-Lok™ design
  • Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
  • Energized receptacle contacts deeply recessed to reduce danger of accidental touching
  • Spring door keeps dust out of receptacle when plug is not in use
  • Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
  • Contacts have beryllium copper wire springs
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Fiberglass reinforced polyester insulating blocks

Includes

Vertical Feed-Thru Hubs

Specifications

Amperage Rating:30 A
Country of Origin:MX
Dimensions:8.69 in H x 5.13 in W x 6-3/4 in D
Horsepower:3 hp
Material:Copper Free Aluminum
NEMA Rating:NEMA 3R
Number of Poles:4
Number of Wires:3
Series:CESD
Terminal Type:Pressure Wire
Voltage Rating:125 to 250 VAC
