CEWDM23933T BLD

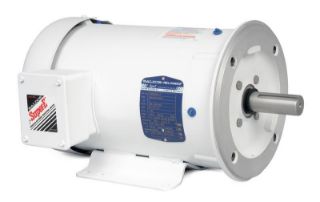

Picture of CEWDM23933T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CEWDM23933T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$7,253.25 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down

Features

15HP,1765RPM,3PH,60HZ,254TC,3942M,TEFC,F

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:254
Frequency Rating:60 Hz
Full Load Current:18.0 A; 36.0 A
Horsepower:15.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:92.40%
Phase:Three Phase
Power Factor:84
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,765 rpm
Sub Brand:Super-E
Voltage Rating:230 V; 460 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
254TC
Frequency Rating
60 Hz
Horsepower
15 HP
Speed Rating
1800 RPM
Type
Wash Down Motor
Voltage Rating
230/460
