CFE 7/8 SB MCG

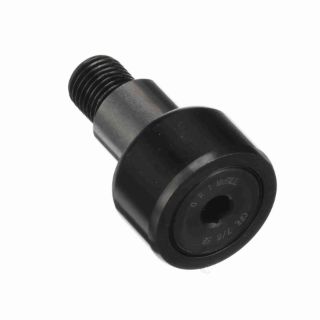

McGill® CAMROL® 2080212000 CFE Cylindrical OD Cam Follower With LUBRI-DISC® Seal, 7/8 in Dia x 1/2 in W Roller, 3/8 in Dia x 7/8 in L Stud, Chrome Steel Roller
Manufacturer: Regal Rexnord
Manufacturer part number: 2080212000
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
4 0
Loading...
$30.85

Product Details

Brand Name

McGill®

Type

Cylindrical OD

Description

The McGill® CAMROL® full complement needle bearings feature black oxide treated bearing steel. They are available in two basic mounting styles for use in mechanical automation or linear motion applications. Our basic features each contribute to superior performance. The LUBRIDISC® seal option helps prevent metal to metal contact within the bearing. It also provides a barrier for containment entry and blowout protection when relubricating. These bearings are available with several dimensional choices. The seal options and combinations provide a specific solution for each application. Within the following section you can learn more about these features and how they can be applied to your application.
McGill® CAMROL® Cam Follower, Cylindrical OD, Series: CFE, 7/8 in Roller Diameter, 1/2 in Roller Width, 3/8 in Stud Diameter, 7/8 in Stud Length, 3/8-24 UNC Thread, 3/8 in Thread Length, 1660 lb Dynamic/1500 lb Static Load, 5400 rpm Maximum, -20 to 250 deg F, Eccentric Stud, Sealed Closure, Hex Head, Chrome Steel Roller, 8620H Steel Stud, Black Oxide

Application

Unit Handling, Minerals and Mining Industries

Standards

ABMA Standard

Features

  • Full complement needle roller construction provides high radial load capacity, it also provides improved resistance to shock loading versus caged needle bearing
  • It provides improved resistance to shock loading versus caged needle bearing
  • A heavy sectioned outer race design to help withstand shock loading of cam follower operation
  • Inner studs are induction heat treated in the roller path and flange surfaces
  • Our sealed bearing option helps extend bearing life by utilizing a lubrication groove and LUBRI-DISC® seals
  • Bearings are supplied pre-lubricated with lithium soap thickened grease
  • The annular groove in the outer raceway provides a lubrication reservoir which increases the pre-lubricated life of the bearing
  • The threads are manufactured to a class 2 tolerance

Specifications

Closure Type:Sealed
Country of Origin:MX
Finish:Black Oxide
Head Type:Hex
Load Capacity:1660 lb Dynamic/1500 lb Static
Maximum Speed:5400 rpm
Roller Diameter:7/8 in
Roller Material:Chrome Steel
Roller Width:1/2 in
Series:CFE
Stud Diameter:3/8 in
Stud Length:7/8 in
Stud Material:8620H Steel
Stud Type:Eccentric
Temperature Rating:-20 to 250 deg F
Thread Length:3/8 in
Thread Size:3/8-24 UNC
