CG56125SS APN

Name: CG56125SS APN
Brand: Appleton
SKU: CG56125SS APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

CG56125SS

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Strain Relief

Description

Appleton® liquidtight strain relief cord and cable connectors are straight connectors, with or without strain relief. They provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. The stainless steel or nickel plated aluminum construction make them ideal for use in washdown areas or high moisture environments in food processing plants, petrochemical facilities, wastewater treatment plants, pulp and paper mills and chemical manufacturing facilities.

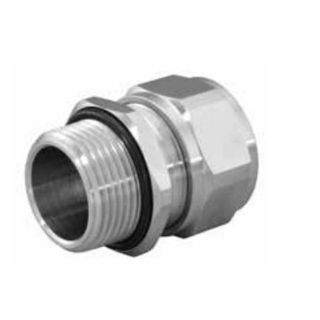

Appleton® Straight Cord and Cable Connector, Strain Relief, Series: CG Series, 1-1/4 in, Cable Openings: 0.562 to 0.688 in, NPT, 304 Stainless Steel, Zinc Plated, 2 in W

Application

Used in wash-down areas or high moisture environments in food processing plants, petrochemical facilities, wastewater treatment plants, pulp and paper mills and chemical manufacturing facilities

Standards

UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III, Div 1 and 2

Features

Exceptional tensile strength
High levels of durability in severely corrosive environments filled with saltwater, acids or chemicals
Combination tightening surface includes both a hex area and knurled surface on nickel plated aluminum only
Embedded O-ring is standard on stainless steel connectors only
Anti-friction washer fits between the nut and bushing for easier compression on the nickel plated aluminum connectors only

Specifications

Cable Openings:	0.562 to 0.688 in
Connection Type:	NPT
Country of Origin:	US
Dimensions:	2 in W
Finish:	Zinc Plated
Material:	304 Stainless Steel
Series:	CG Series
Trade Size:	1-1/4 in
