CG75125S APN

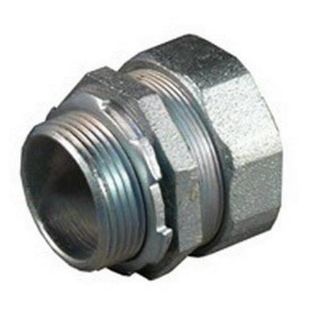

Picture of CG75125S APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
CG-75125S
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$55.62 / EA

Description

Brand Name

Appleton®

Type

Strain Relief

Description

Appleton® liquidtight strain relief cord and cable connectors are available in straight or 90 deg, aluminum or steel construction to meet the requirements of rugged service on all types of equipment and in all non-hazardous areas. They provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, they seal electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.
Appleton® Straight Cord Connector, Strain Relief, Series: CG Series, 1-1/4 in, Cable Openings: 3/4 to 7/8 in, Threaded Hub, Machined Steel, Natural, Gray Label, 1-3/4 in W

Application

For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable

Standards

CSA C22.2 File No.18.3 | CSA 065178 | UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III | UL 514B File No. E14817 Listed

Features

  • Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
  • Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
  • Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
  • Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
  • For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
  • Silicone free

Specifications

Cable Openings:3/4 to 7/8 in
Color:Gray Label
Connection Type:Threaded Hub
Country of Origin:MX
Dimensions:1-3/4 in W
Finish:Natural
Material:Machined Steel
Series:CG Series
Trade Size:1-1/4 in

Products Specifications

Size
1 1/4 in
