Actual Product May Vary From Image

CG905050 APN

Name: CG905050 APN
Brand: Appleton
SKU: CG905050 APN
Price: 19.62 USD
Availability: InStock

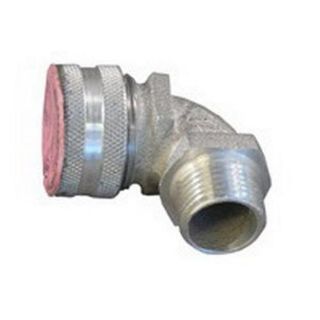

Appleton® CG90-5050 Liquidtight Strain Relief Connector, 1/2 in Trade, 1/2 to 5/8 in Cable Openings, Cast Aluminum

Manufacturer: Appleton

Manufacturer part number: CG90-5050

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
5	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$19.62

Qty:

Product Details

Brand Name

Appleton®

Description

Appleton® liquidtight strain relief cord and cable connectors are available in straight or 90 deg, aluminum or steel construction to meet the requirements of rugged service on all types of equipment and in all non-hazardous areas. They provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, they seal electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

Appleton® Liquidtight Strain Relief Connector, 1/2 in Trade, Cable Openings: 1/2 to 5/8 in, Thread Connection, 90 deg Angle, Cast Aluminum, Pink, 1-1/4 in OD Dimensions

Application

Used to provide a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable and for use in wet or dry locations

Standards

Class I, Div 2, Class II, Div 1, 2, Class III | UL 514B File No. E14817 Listed | CSA C22.2 No. 18.3 | CSA 065178 Certified

Features

Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable

Specifications

Angle:	90 deg
Cable Openings:	1/2 to 5/8 in
Color:	Pink
Connection Type:	Thread
Country of Origin:	MX
Dimensions:	1-1/4 in OD
Material:	Cast Aluminum
Trade Size:	1/2 in
