CH80LW RBC

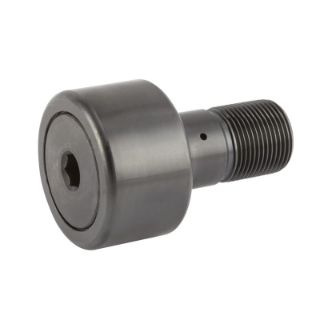

Picture of CH80LW RBC
Actual Product May Vary From Image

Product Details

Manufacturer:
Roller Bearing Corporation
Manufacturer part number:
CH80LW
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$227.78 / EA

Description

Brand Name

RBC®

Type

Needle Roller

Description

Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.
RBC® HexLube® Universal Crowned Cam Follower, Needle Roller, Series: CH-LW, 2-1/2 in Roller Dia, 1-1/2 in Roller Width, 1-1/4 in Stud Dia, 2-1/4 in Stud Length, 1-1/4-12 UNF-2A, 1-1/8 in Thread Length, 9400 lb Dynamic/25400 lb Static, 2000 rpm Maximum, 250 deg F, Heavy Duty Stud, Sealed Closure, Hex, Chrome Steel Roller, Chrome Steel Stud, Black Oxide

Application

Material Handling, Turntable Mounting, Lift Trucks and Textile Machinery

Standards

ANSI/ABMA Standard 11 | ASPR | CAS | DFAR | FAR Standards

Features

  • Inventory reduction of about 50%
  • Allows relubrication in tight spots or when stud access is limited
  • HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
  • Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
  • Double sealed to keep grease in and contaminants out
  • Screwdriver slots
  • 12900 lb axial dynamic/33000 lb axial static

Specifications

Closure Type:Sealed
Country of Origin:US
Finish:Black Oxide
Head Type:Hex
Load Capacity:9400 lb Dynamic/25400 lb Static
Maximum Speed:2000 rpm
Roller Diameter:2-1/2 in
Roller Material:Chrome Steel
Roller Width:1-1/2 in
Series:CH-LW
Stud Diameter:1-1/4 in
Stud Length:2-1/4 in
Stud Material:Chrome Steel
Stud Type:Heavy Duty
Temperature Rating:250 deg F
Thread Length:1-1/8 in
Thread Size:1-1/4-12 UNF-2A

Products Specifications

Brand Name
RBC
Measuring Units
Inch
Roller Diameter
2 1/2 in
Sealed
Sealed
Stud Diameter
1 1/4 in
