CJ 110/125B HUB NI 65MM F7 KW LOV

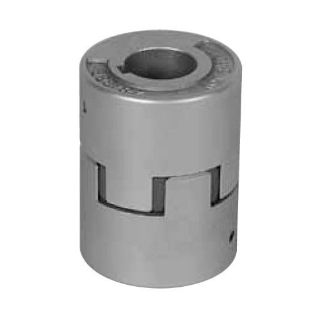

Picture of CJ 110/125B HUB NI 65MM F7 KW LOV
Actual Product May Vary From Image

Product Details

Manufacturer:
Lovejoy
Manufacturer part number:
68514476594
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Lovejoy®

Type

Style B

Description

Lovejoy® Curved Jaw Coupling Hub, Style B, Series: CJ Series, 110 Coupling, 65 mm Bore, 255.02 mm Diameter Hub, 2240 rpm Maximum, 119.89 mm Length Through Bore, 5/8-11 Screw, Nodular Iron

Standards

ECCN EAR99

Features

  • Three-piece design that is easy to assemble
  • The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider)
  • Hubs are offered in sintered iron, steel, aluminum, cast iron and nodular iron materials
  • No metal to metal contact and no lubrication required
  • Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)
  • The CJ series covers a torque range of 67 to 247800 in-lb

Specifications

Bore Diameter:65 mm
Country of Origin:CN
Coupling Size:110
Hub Diameter:255.02 mm
Length Through Bore:119.89 mm
Material:Nodular Iron
Maximum Speed:2240 rpm
Screw Size:5/8-11
Series:CJ Series
