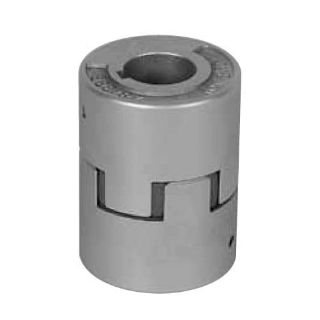

Name: CJ 28/38B HUB STL 24MM N/KW LOV
Brand: Lovejoy
SKU: CJ 28/38B HUB STL 24MM N/KW LOV
Availability: OutOfStock

CJ 28/38B HUB STL 24MM N/KW LOV

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

68514476181

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Lovejoy®

Type

Style B

Description

Lovejoy® Curved Jaw Coupling Hub, Style B, Series: CJ Series, 28 Coupling, 24 mm Bore, 65.02 mm Diameter Hub, 8500 rpm Maximum, 35.05 mm Length Through Bore, 5/16-18 Screw, Steel

Standards

ECCN EAR99

Features

Three-piece design that is easy to assemble
The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider)
Hubs are offered in sintered iron, steel, aluminum, cast iron and nodular iron materials
No metal to metal contact and no lubrication required
Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)
The CJ series covers a torque range of 67 to 247800 in-lb
Without keyway

Specifications

Bore Diameter:	24 mm
Country of Origin:	US
Coupling Size:	28
Hub Diameter:	65.02 mm
Length Through Bore:	35.05 mm
Material:	Steel
Maximum Speed:	8500 rpm
Screw Size:	5/16-18
Series:	CJ Series
