CJ5E88TGRD PAN

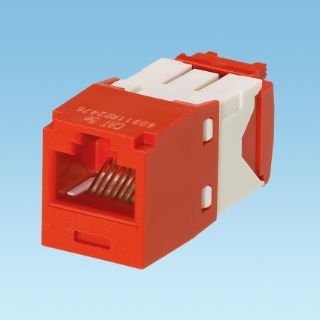

Picture of CJ5E88TGRD PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
CJ5E88TGRD
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$14.54 / EA

Description

Brand Name

Panduit®

Type

1-Slot 8-Position 8-Wire Universal TG Style Unshielded

Description

Cat 5e/Class D, 8-position, UTP jack module shall terminate 4-pair, 26 to 22 AWG, 100 Ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded red to designate Cat 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
Panduit®, CJ5E88TGRD, UTP Jack Module, 8-Position 8-Wire TG Style Universal, Cat 5e RJ45 Module, Faceplate/Panel Mounting, ABS, Red, 0.71 in H x 0.62 in W x 1.5 in D Dimensions

Application

10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 4/16 Token Ring, Voice/Data Systems and Voice Over Internet Protocol (VoIP) Applications

Standards

ANSI/TIA 568-C.2/1096-A | ANSI/TIA-568.2-D | ARRA Compliant | Buy American Act Compliant | IEC 60603-7 | IEEE 802.3af/802.3at/802.3bt Type 3/Type 4 | RoHS Compliant | UL 1863/2024 | UL 2043

Features

  • 100% performance tested
  • Utilizes enhanced Giga-TX™ technology
  • Improved termination cap conductor retention slots simplify jack module termination
  • UTP jack modules snap-in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
  • True strain relief controls cable bend radius for long term installed performance
  • Individually serialized marked with quality control number for future traceability
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible
  • Can be clearly identified with optional labels and icons for port Identification

Specifications

Color:Red
Country of Origin:CR
Dimensions:0.62 in W x 1.5 in D x 0.71 in H
Material:ABS
Module Type:Cat 5e RJ45
Mounting Type:Faceplate/Panel
Number of Ports:1
