CJ688TGBL PAN

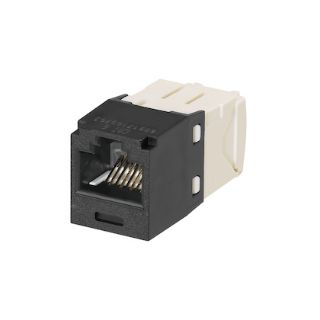

Panduit® CJ688TGBL 8-Position 8-Wire TG Style Shuttered Universal UTP Jack Module, Cat 6 RJ45 Module, Faceplate/Panel Mounting, (1) Ports, ABS/Polycarbonate, Black
Manufacturer: Panduit
Manufacturer part number: CJ688TGBL
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$18.06

Product Details

Brand Name

Panduit®

Type

8-Position 8-Wire TG Style Shuttered Universal

Description

Cat 6/Class E, 8-position, UTP jack module shall terminate 4-pair, 26 to 22 AWG, 100 Ohm unshielded twisted pair cable and shall not require use of a punch down tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Cat 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.
Panduit®, CJ688TGBL, UTP Jack Module, 8-Position 8-Wire TG Style Shuttered Universal, Cat 6 RJ45 Module, Faceplate/Panel Mounting, 1 Ports, ABS/Polycarbonate, Black, 0.62 in W x 1.5 in D x 0.71 in H Dimensions

Application

10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Digital Video, Broadband/Baseband Analog Video and Voice Over Internet Protocol and Unshielded Application

Standards

ANSI/TIA 568-C.2/1096-A | ARRA Compliant | Buy American Act Compliant | IEC 60603-7/60512-99-001 | RoHS Compliant | UL 1863/2043

Features

  • 100% performance tested assures that patch cords and pigtails are standard compliant
  • Utilizes enhanced optimizes performance by eliminating conductor untwist and Giga-TX™ technology
  • Modular UTP jack modules snap-in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves adds and changes
  • Individually serialized marked with quality control number for future traceability
  • RJ45 interface industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible
  • Identification can be clearly identified with optional labels and icons for port identification

Specifications

Color:Black
Dimensions:0.62 in W x 1.5 in D x 0.71 in H
Material:ABS/Polycarbonate
Module Type:Cat 6 RJ45
Mounting Type:Faceplate/Panel
Number of Ports:1
