CJ6X88TGWH PAN

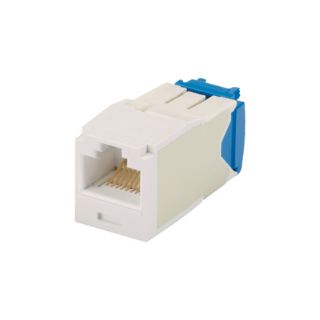

Picture of CJ6X88TGWH PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
CJ6X88TGWH
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$27.92 / EA

Description

Brand Name

Panduit®

Type

1-Slot 8-Position 8-Wire TG Style Universal Unshielded

Description

Panduit® 10Gig™ PanNet® TX6A™ Jack Module, 8-Position 8-Wire Universal TG Style Unshielded, Cat 6A RJ45/Mini-Com® Module, 1 Ports, ABS/Polycarbonate, White, 0.63 in W x 1.5 in D x 0.71 in H

Application

10GBASE-T, HDBaseT™ Running Next Generation Power over Ethernet (PoE)

Standards

ANSI/TIA-568-C.2/Class EA | ANSI/TIA-568-C.2/1096-A | ARRA Compliant | Buy American Act Compliant | FCC Certified | IEC 60603-7/60512-99-001 | RoHS Compliant | T568A/T568B | UL File No. 1863/2043

Features

  • Compatible with components of the TX6A™ and TX6A-SD™ 10 Gig UTP copper cabling system with MaTriX technology (100 and 70 m solutions) for increased design flexibility
  • Innovative MaTriX split foil technology provides superior alien crosstalk performance enabling high density applications (48-ports, 1RU)
  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Marked with quality control number for future traceability
  • Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
  • Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
  • EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability TGJT termination tool ideal for high volume installations
  • Provides a simple and secure method to control access to data ports while not in use
  • Each module is 100% factory tested to exceed industry standard performance requirements
  • TG style termination eliminates the need for a termination tool
  • Each jack is individually serialized for traceability and is compatible with Mini-Com® shielded modular patch panel and faceplate
  • The Mini-Com® Cat 6A UTP RJ45 TG jack module is designed to terminate four-pair, 26 to 22 AWG twisted pair cable

Includes

Termination Tool

Specifications

Color:White
Country of Origin:US
Dimensions:0.63 in W x 1.5 in D x 0.71 in H
Material:ABS/Polycarbonate
Module Type:Cat 6A RJ45/Mini-Com®
Mounting Type:Panel
Number of Ports:1
