CJE688TGWH PAN

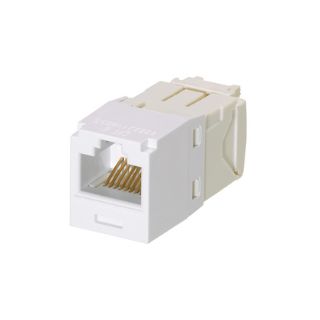

Picture of CJE688TGWH PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
CJE688TGWH
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

1-Slot 8-Position 8-Wire TG Style Corrosive-Resistant Universal Unshielded

Description

Cat 6/Class E, 8-position, UTP jack module shall terminate 4-pair, 26 to 22 AWG, 100 Ohm unshielded twisted pair cable and shall not require use of a punch down tool. Polymer based gel shall protect electrical contacts and internal components by reducing the ingress of moisture and other corrosive elements such as salt, providing improved long term performance. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Cat 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.
Panduit®, CJE688TGWH, UTP Jack Module, 1-Slot 8-Position 8-Wire TG Style Corrosive-Resistant Universal Unshielded, Cat 6 RJ45 Module, Faceplate/Panel Mounting, 1 Ports, ABS/Polycarbonate, White, 0.62 in W x 1.5 in D x 0.71 in H Dimensions

Application

10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Digital Video, Broadband/Baseband Analog Video and Voice Over Internet Protocol

Standards

ANSI/TIA 968-A | ANSI/TIA-568.2-D | ARRA Compliant | Buy American Act Compliant | IEC 60603-7 | IEEE 802.3af/802.3at/802.3bt Type 3/Type 4 | PoE Compliant | PoE+ Compliant | RoHS Compliant | TIA/EIA 568-C.2 | UL 1863 | UL 2043

Features

  • 100% performance tested
  • Utilizes enhanced Giga-TX™ technology
  • Improved termination cap conductor retention slots simplify jack module termination
  • UTP jack modules snap-in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
  • True strain relief controls cable bend radius for long term installed performance
  • Individually serialized marked with quality control number for future traceability
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords and backwards compatible
  • Can be clearly identified with optional labels and icons for port identification
  • Polymer based gel protects electrical contacts and internal components by reducing the ingress of moisture and other corrosive elements such as salt, providing improved long term performance
  • High temperature-resistant material
  • Polycarbonate wire cap and strain relief clip

Specifications

Color:White
Country of Origin:CR
Dimensions:0.62 in W x 1.5 in D x 0.71 in H
Material:ABS/Polycarbonate
Module Type:Cat 6 RJ45
Mounting Type:Faceplate/Panel
Number of Ports:1
