CJLR688TGAW-24 PAN

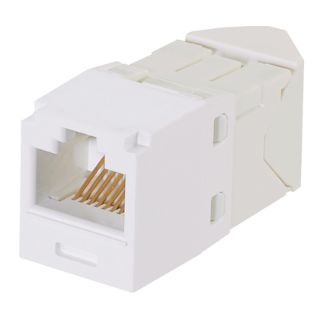

Picture of CJLR688TGAW-24 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
CJLR688TGAW-24
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

8-Position 8-Wire TG Style Universal

Description

Cat 6/Class E, 8-position, UTP jack module shall terminate 4-pair, 26 to 22 AWG, 100 Ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Cat 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.
Panduit®, CJLR688TGAW-24, UTP Jack Module, 8-Position 8-Wire TG Style Universal, Cat 6 RJ45 Module, ABS/Polycarbonate, Arctic White, 1.75 in L x 0.62 in W x 0.71 in H Dimensions

Application

10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, 155 mbps ATM, 622 mbps ATM, 1.2 gbps ATM, Token Ring 4/16, Digital Video, Broadband/Baseband Analog Video and Voice Over Internet Protocol

Standards

ANSI/TIA-568-C.2 Category 6a/1096-A | ARRA Compliant | BAA Compliant | IEC 60603-7/60512-99-001 | PoE/PoE+/PoE++ Compliant | RoHS Compliant | UL 1863/2043 | UL 94 V-0 Flammability Rated | Buy American Act Compliant

Features

  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • UTP jack modules snap-in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
  • Marked with quality control number for future traceability
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible
  • Can be clearly identified with optional labels and icons for port identification
  • Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated

Specifications

Color:Arctic White
Country of Origin:US
Dimensions:1.75 in L x 0.62 in W x 0.71 in H
Material:ABS/Polycarbonate
Module Type:Cat 6 RJ45
Mounting Type:Faceplate/Panel
