CJS6X88TGGRY PAN

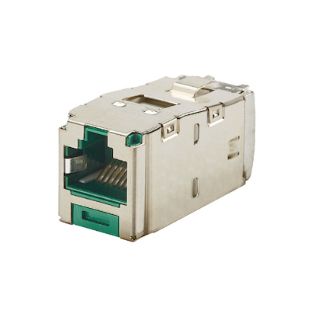

Picture of CJS6X88TGGRY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
CJS6X88TGGRY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$33.52 / EA

Description

Brand Name

Panduit®

Type

1-Slot 8-Position 8-Wire Shielded Universal

Description

Cat 6a/Class EA, 8-position, shielded jack module shall terminate 4-pair, 26 to 22 AWG, 100 Ohm shielded twisted pair cable and shall not require use of a punchdown tool. Shielded jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded blue to designate Cat 6a performance and shall include a universal label coded for T568A and T568B wiring schemes. The Mini-Com® TX6A™ 10Gig™ shielded Jack Module must be installed as part of the TX6A™ 10Gig™ shielded copper cabling system to achieve IEEE 10GBASE-T certified performance.
Panduit®, CJS6X88TGGRY, STP Jack Module, 8-Position 8-Wire TG Style Universal, Cat 6a RJ45 Module, Faceplate/Panel Mounting, 1 Ports, ABS, Green, 0.73 in H x 0.62 in W x 1.5 in D Dimensions

Application

Gigabit Ethernet Channels, Real Time Intensive Financial Transactions, Streaming Video, Animation, Scientific Modeling and Medical Imaging Applications

Standards

ANSI/TIA-1096-A | ANSI/TIA-568-C.2 | ANSI/TIA-568.2-D | ARRA Compliant | Buy American Act Compliant | IEC 60603-7/60512-99-001 | IEEE 802.3af/802.3at/802.3bt Type 3/Type 4 | RoHS Compliant | UL 1863/2043

Features

  • 100% performance tested
  • Utilizes enhanced Giga-TX™ technology
  • Integral shield provides a 360 deg conductive path to ground shielded jack module with no additional assembly required
  • Snap-in grounding shield provides seamless bonding of the jack module with Mini-Com® all metal modular patch panels
  • Shielded jack modules snap-in and out of all Mini-Com® faceplates, metal modular patch panels and surface mount boxes for easy moves, adds and changes
  • Individually serialized marked with quality control number for future traceability
  • Can be clearly identified with optional labels and icons for port identification
  • High density able to support 48-port in 1RU density

Specifications

Color:Green
Country of Origin:CR
Dimensions:0.62 in W x 1.5 in D x 0.73 in H
Material:ABS
Module Type:Cat 6a RJ45
Mounting Type:Faceplate/Panel
Number of Ports:1
