CJT5E88TGIW PAN

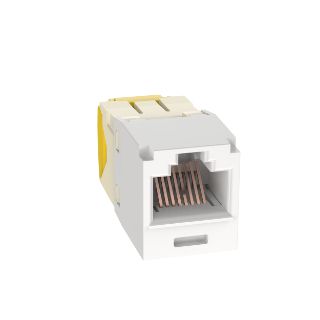

Picture of CJT5E88TGIW PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
CJT5E88TGIW
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$16.02 / EA

Description

Brand Name

Panduit®

Type

8-Position 8-Wire TG Style Universal

Description

Cat 5e/Class D, 8-position, UTP jack module shall terminate 4-pair, 28 AWG solid/stranded and 30 AWG solid, 100 Ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded yellow to designate Cat 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
Panduit®, CJT5E88TGIW, UTP Jack Module, 8-Position 8-Wire TG Style Universal, Cat 5e RJ45 Module, Faceplate/Panel Mounting, 1 Ports, ABS, Off-White, 0.72 in H x 0.62 in W x 1.5 in D Dimensions

Application

10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, Token Ring 4/16, Voice/Data Systems and Voice Over Internet Protocol (VoIP) Applications

Standards

ANSI/TIA 568-C.2/1096-A | ANSI/TIA-568-C.2 Category 5e | ARRA Compliant | Buy American Act Compliant | CSA Certified | FCC Approved | IEC 60603-7 | IEEE 802.3af/802.3at | RoHS Compliant | T568A/T568B | UL File No. 1863

Features

  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Optimizes performance by eliminating conductor untwist and reduces technology installations time and expense
  • Conductor retention slots simplify jack module termination
  • UTP jack modules snap-in and out of all Mini-Com® faceplate, modular patch panel and surface mount boxes for easy moves, adds and changes
  • Controls cable bend radius for long term installed performance
  • Marked with quality control number for future traceability
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords and backwards compatible
  • EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability TGJT termination tool ideal for high volume installations
  • Provides a simple and secure method to control access to data ports while not in use
  • Each module is 100% factory tested to exceed industry standard performance requirements
  • TG style termination eliminates the need for a termination tool
  • Each jack is individually serialized for traceability and is compatible with Mini-Com® shielded modular patch panel and faceplate
  • The Mini-Com® Cat 5e UTP RJ45 28 AWG TG jack module is designed to terminate four-pair, 28 AWG solid/stranded and 30 AWG solid twisted pair cable

Specifications

Color:Off-White
Country of Origin:US
Dimensions:0.62 in W x 1.5 in D x 0.71 in H
Material:ABS
Module Type:Cat 5e RJ45
Mounting Type:Faceplate/Panel
Number of Ports:1
