CL5004A-50 BLD

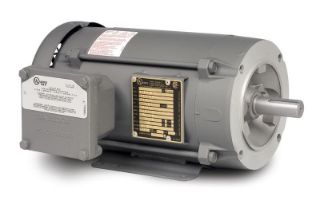

Picture of CL5004A-50 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CL5004A-50
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

.5HP,1425RPM,1PH,50HZ,56C,X3428L,XPFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:XPFC
Frame:56
Frequency Rating:50 Hz
Full Load Current:3.6 A; 7.2 A
Horsepower:0.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:N
NEMA Nominal Efficincy:62.00%
Phase:Single Phase
Power Factor:76
Rotation:Reversible
Service Factor:1
Speed Rating:1,425 rpm
Voltage Rating:110 V; 220 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
XPFC
Frame
56C
Frequency Rating
50 Hz
Horsepower
1/2 HP
Speed Rating
1400 RPM
Type
50 Hertz Motor
Voltage Rating
110/220
