CL5027T-50 BLD

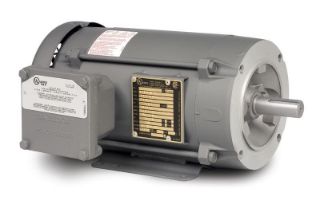

Picture of CL5027T-50 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CL5027T-50
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

2HP,1425RPM,1PH,50HZ,182TC,X3646L,XPFC

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:XPFC
Frame:182
Frequency Rating:50 Hz
Full Load Current:11.5 A; 23.0 A
Horsepower:2.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:L
NEMA Nominal Efficincy:77.00%
Phase:Single Phase
Power Factor:78
Rotation:Reversible
Service Factor:1
Speed Rating:1,425 rpm
Voltage Rating:110 V; 220 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
XPFC
Frame
182TC
Frequency Rating
50 Hz
Horsepower
2 HP
Speed Rating
1400 RPM
Type
50 Hertz Motor
Voltage Rating
110/220
