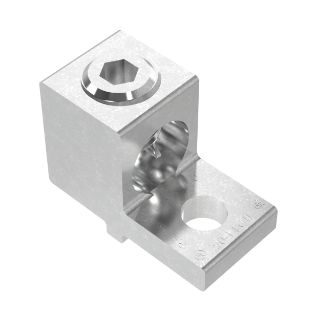

Actual Product May Vary From Image

CLMAR2/0-14-Q PAN

Name: CLMAR2/0-14-Q PAN
Brand: Panduit
SKU: CLMAR2/0-14-Q PAN
Price: 20.92 USD
Availability: InStock

Panduit® CLMAR2/0-14-Q Anti-Rotational Mechanical Connector Lug, 14 to 2/0 AWG Conductor Copper Conductor, 1/8 in Stud

Manufacturer: Panduit

Manufacturer part number: CLMAR2/0-14-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$20.92

Qty:

Product Details

Brand Name

Panduit®

Type

Anti-Rotational

Description

Panduit®, CLMAR2/0-14-Q, Mechanical Connector Lug, Anti-Rotational, Copper Conductor, 14 to 2/0 AWG Conductor, 1/8 in Stud, 0.19 in THK Tongue, Specifications: 3/16 in Hex Key, 0.61 in L Wire Strip, Tin Plated, 1.2 in L x 0.87 in H Dimensions

Application

Main Equipment Ground Conductor

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant

Features

The CLMAR2/0-14-Q copper Mechanical Lug provides an anti-rotational feature and is used to connect the main ground conductor to Panduit UGB series of universal ground bars

Specifications

Conductor Size:	14 to 2/0 AWG
Conductor Type:	Copper
Country of Origin:	US
Dimensions:	1.2 in L x 0.61 in W x 0.87 in H
Finish:	TiN Coated
Material:	Copper
Number of Bolt Holes:	1
Specifications:	3/16 in Hex Key, 0.61 in L Wire Strip
Stud Size:	1/4 in
Tongue Size:	0.19 in THK
