CM-1560-C GRL

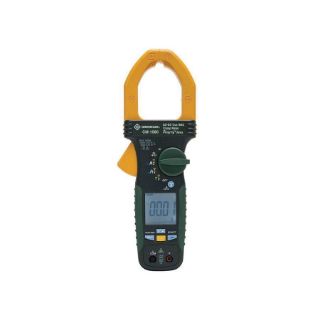

Picture of CM-1560-C GRL
Actual Product May Vary From Image

Product Details

Manufacturer:
Greenlee
Manufacturer part number:
CM-1560-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$629.46 / EA

Description

Brand Name

Greenlee®

Type

Standard

Description

Greenlee® Clamp Meter, Standard, 60/600/1000 A at 600/1000 VAC/VDC Electrical Rating, 600 Ohm/6/60 kOhm Resistance, 40/50 Hz Frequency, 2 in Jaw, 6000 Count, Backlit LCD Display, True RMS AC Response, +/-2.2% + 0.17 A at 0 to 3.99 A, +/-2.2% + 0.07 A at 4 to 60 A AC Current Accuracy, +/-1.8% + 0.7 VDC at 600 VAC, +/-1.8% + 7 VDC at 1000 VAC Voltage Accuracy, Safety Rating: CAT III 1000 V/CAT IV 600 V, 1.5 V AA Battery Power Source, 14 to 122 deg F Operating, 10.1 in L x 3.7 in W x 1.7 in D Dimensions

Application

General Purpose and Industrial Applications

Standards

ARRA Compliant | cUL/UL Listed | UL Listed | CE Certified

Features

  • CM-1560 clamp meter with certificate of calibration
  • Measures AC+DC current
  • AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
  • Also measures DC voltage, resistance, capacitance and frequency
  • Tests continuity and diodes
  • Flashlight inside clamp jaw for easier work in dark locations
  • Backlight and relative mode for added versatility
  • Peak-RMS measures motor in rush current
  • AmpTip™ increases accuracy on small wires and low current
  • Data hold
  • Recording of maximum, minimum and average readings
  • Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds
  • 3-5/6 in digits
  • 2 deg pollution
  • Automatic polarity
  • Molded grip for additional stability

Includes

(2) Batteries, (1) TSG-3 Test Lead and (1) TC-30 Carrying Case

Specifications

AC Current Accuracy:+/-2.2% + 0.17 A at 0 to 3.99 A, +/-2.2% + 0.07 A at 4 to 60 A
AC Response:True RMS
Country of Origin:TW
Counts:6000
Dimensions:10.1 in L x 3.7 in W x 1.7 in D
Display Type:Backlit LCD
Electrical Ratings:60/600/1000 A at 600/1000 VAC/VDC
Frequency Rating:40/50 Hz
Jaw Capacity:2 in
Operating Temperature:14 to 122 deg F
Power Source:1.5 V AA Battery
Resistance:600 Ohm/6/60 kOhm
Safety Rating:CAT III 1000 V/CAT IV 600 V
Voltage Accuracy:+/-1.8% + 0.7 VDC at 600 VAC, +/-1.8% + 7 VDC at 1000 VAC
