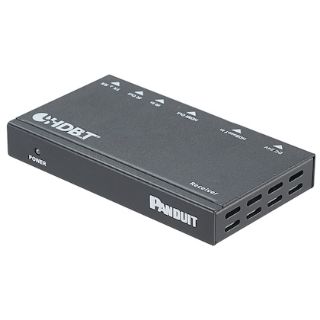

CMHDBTWRX PAN

Name: CMHDBTWRX PAN
Brand: Panduit
SKU: CMHDBTWRX PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

CMHDBTWRX

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

HD Base

Description

The HDBaseT extenders shall extend an HDMI, RS232 signal, and power over 70 m/230 ft of Category 6 or 6A cable. A two-gang wall plate transmitter and a slim-line box transmitter shall be available and compatible with both a standard receiver and a receiver with audio extraction (audio de embedding). HDMI patch cords meet the 2.0 specification and are recommended for use in the HDBaseT channel in conjunction with Panduit® copper cable and connectivity.

Panduit®, CMHDBTWRX, Receiver Box, Series: Slim Line, 24 VDC, 1A Power Source, 2.68 in Length, 4.53 in Width, 0.71 in Depth, 230 ft Maximum Distance

Application

Classrooms, Conference Rooms and Digital Signage Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant

Features

HDMI 1.4b, HDCP 2.2 and 1.4, EDID 1.4
Up to 4K x 2K at 30 Hz
Up to 7.1 channels of High Definition audio pass-through (LPCM, Dolby TrueHD and DTS-HD master audio)
10 bits high dynamic range pass-through
Supports HDMI high bit rate audio pass-through
Power over cable is supported
Wall plate transmitter supports auto-switching between sources, comes preprogrammed
HDMI patch cords are certified HDMI 2.0 compliant

Includes

Power Supply, IR Emitter, Mounting Bracket, Screw

Specifications

Country of Origin:	CN
Depth:	0.71 in
Length:	2.68 in
Maximum Distance:	230 ft
Power Source:	24 VDC, 1 A
Series:	Slim Line
Width:	4.53 in
