CMLEDS704G5BHC APN

Name: CMLEDS704G5BHC APN
Brand: Appleton
SKU: CMLEDS704G5BHC APN
Availability: OutOfStock

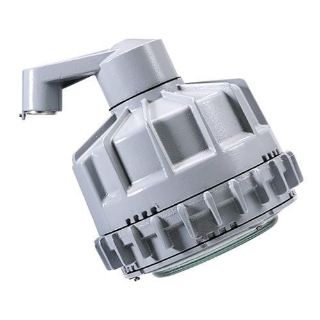

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

CMLEDS704G5BHC

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Cylindrical Dust-Ignitionproof Factory Sealed

Description

Code Master™ factory sealed, LED Luminaires are designed for use in hazardous locations as well as areas exposed to corrosive atmospheres, moisture or cold ambient temperatures. They are easy to specify and install to accommodate any application requirement. With LED dependability and field replaceable components, they deliver long term performance with virtually no maintece and they are built tough to withstand the toughest environments.

Appleton® Code Master™ Explosionproof Luminaire, Cylindrical Dust-Ignitionproof Factory Sealed, Series: CMLED, 347 to 480 VAC, 35/33 W Fixture, 0.24/0.11 A, LED Lamp, 60000 hr Average Life, 5650 K Color Temperature, 70 CRI, Polycarbonate Lens, 2582 Lumens, NEMA 3R/4X/5/IP66/IP67 Enclosure, Stanchion Mounting, Cast Copper Free Aluminum Housing Material, Painted Gray Baked Epoxy Clad Housing Finish, 14.4 in L x 13 in W Dimensions

Application

Chemical, Oil, Gas, Petrochemical, Pulp and Paper, Foundries, Manufacturing, Waste and Sewage Treatment, Pharmaceutical, Mining, Power Generation and General Purpose Lighting

Standards

UL 50/50E/844/1598/1598A/8750 | CAN/CSA-C22.2 No. 94.1-07 (R2012) | CAN/CSA-C22.2 No. 94.2-07 (R2012) | CAN/CSA-C22.2 No. 137- M1981 (R2009) | CAN/CSA-C22.2 No. 250.0-08 (R2013) | CAN/CSA-C22.2 No. 250.13 | CAN/CSA-C22.2 No. 60529-05 (R2010) Certified | ANSI/IEC 60529 | cCSAus 70030675 | NEC/CEC Class I, Division 1 and 2, Groups B, C, D Class I, Zone 1 Group IIB + H2 Class II, Division 1, Group E, F, G Class II, Division 2, Group F, G Class III

Features

60000 hr rated life eliminates the need for frequent relamping
Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
All threaded joints are flame-tight
Fixture housing and mounting hoods are copper free cast aluminum with baked epoxy finish, all exposed hardware is stainless steel
Aluminum body utilizes the same Code Master™ HID mounting hoods and is an easy retrofit for existing Code Master™ HID installations, can be pendant, ceiling, wall or stanchion mounted
ACME double-lead threads speed installation and fixture removal from mounting hood only half as many turns are required as for single lead threads
The threads do not stick or gall, eliminating the troublesome problems often encountered with single lead threads during fixture unit removal
Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
External seals are not required
Lens, driver and LED array are all field replaceable

Specifications

Amperage Rating:	0.24/0.11 A
Average Life:	60000 hr
Color Rendering Index (CRI):	70
Color Temperature:	5650 K
Country of Origin:	MX
Dimensions:	14.4 in L x 13 in W
Enclosure Type:	NEMA 3R/4X/5/IP66/IP67
Fixture Wattage:	35/33 W
Housing Finish:	Painted Gray Baked Epoxy Clad
Housing Material:	Cast Copper Free Aluminum
Lamp Type:	LED
Lens Type:	Polycarbonate
Lumens:	2582 Lumens
Mounting Type:	Stanchion
Series:	CMLED
Voltage Rating:	347 to 480 VAC
