CNM3454/35 BLD

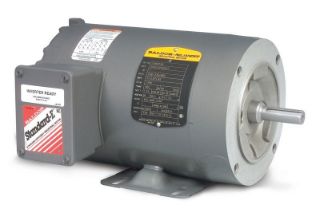

Picture of CNM3454/35 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CNM3454/35
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$734.96 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

.25HP,1750RPM,3PH,60HZ,56C,3513M,TENV,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:56
Frequency Rating:60 Hz
Full Load Current:0.4 A; 0.8 A
Horsepower:250.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:80.00%
Phase:Three Phase
Power Factor:7
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,750 rpm
Voltage Rating:460 V; 230 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TENV
Frame
56C
Frequency Rating
60 Hz
Horsepower
1/4 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
230/460 V
