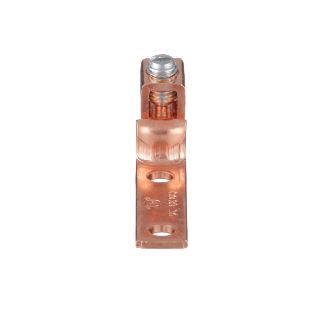

CO35-36SL-QY PAN

Name: CO35-36SL-QY PAN
Brand: Panduit
SKU: CO35-36SL-QY PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

CO35-36SL-QY

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Single Barrel

Description

Panduit®, CO35-36SL-QY, Mechanical Connector Lug, Stranded Bare Copper Conductor, 14 to 6 AWG Conductor, 3/16 in Stud, 2 Bolt Holes, 1.46 in L x 0.38 in W x 0.07 in THK Tongue, Offset Floating Tongue, 600 VAC, Specifications: 1-Barrel, 50 A, 90 deg C, 2.19 in L x 0.43 in W x 0.43 in H Dimensions

Application

Stranded Copper Code Conductors Applications

Standards

Features

Internal pressure bar and v collar
Wide wire range taking capability minimizes inventory requirements
Mechanical Connector Lug two-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirement
The plated steel set screw provides a durable electrical contract between conductor and connector
The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact

Specifications

Conductor Size:	14 to 6 AWG
Conductor Type:	Copper/Stranded
Country of Origin:	IN
Dimensions:	2.19 in L x 0.38 in W
Finish:	Bared
Material:	Copper
Number of Bolt Holes:	2
Series:	CO
Specifications:	0.49 in H x 0.38 in W Collar, 1 in Stud Hole Spacing, Slotted Head Screw, 50 A Current Rating
Stud Size:	3/16 in
Temperature Rating:	90 deg C
Tongue Size:	1.46 in L x 0.38 in W x 0.07 in THK
Tongue Type:	Offset Floating
Voltage Rating:	600 VAC
