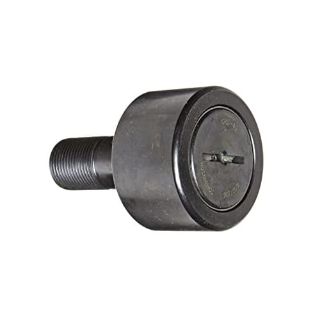

Actual Product May Vary From Image

CR-10-1 KOY

Name: CR-10-1 KOY
Brand: Koyo Bearings
SKU: CR-10-1 KOY
Price: 24.81 USD
Availability: OutOfStock

Koyo CR-10-1 Inch Series Stud Type Uncaged Needle Bearing Track Roller, 5/8 in Dia x 0.438 in W Roller, 1/4 in Dia x 3/4 in L Stud

Manufacturer: Koyo Bearings

Manufacturer part number: CR-10-1

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$24.81

Qty:

Product Details

Brand Name

Koyo

Type

Stud Type Uncaged

Description

Track rollers (also known as cam followers) are characterized by their thick-walled outer rings that run directly on a track. The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses.

Koyo Needle Bearing Track Roller, Stud Type Uncaged, Series: CR Inch Series, 5/8 in Roller Diameter, 0.438 in Roller Width, 1/4 in Stud Diameter, 3/4 in Stud Length, 1/4-28 Thread, 5/16 in Thread Length, 1070 lbf Dynamic/1510 lbf Static Load, 5500 rpm Grease Maximum, Black Oxide

Application

Ram Support Rollers, Material Handling and Indexing Equipment

Standards

ANSI/ABMA 18.2

Features

Screwdriver slot in head facilitates mounting
Non-separable, sealed unit with outer ring, full complement of needle rollers, stud seals, self-lubricating resin internal thrust washers and stud-fastened retaining washer
Re-lubrication via axially drilled hole through stud with cross-drilled holes in stud raceway and shank
Recessed axial hole accepts standard nominal inch drive-type grease lubrication fitting
Lubrication fitting plugs furnished to close off unused holes
Tolerance limits for outer diameters of stud and outer ring refer to "single mean diameter"
A close fit between stud and hole required for mounting
Retaining washer should be firmly backed up by flat housing shoulder (perpendicular to the stud axis)
Shoulder diameter should be atleast same size as minimum clamping diameter listed
May be mounted with two thin lock nuts or nut and lock washer
Without seal

Specifications

Finish:	Black Oxide
Load Capacity:	1070 lbf Dynamic/1510 lbf Static
Maximum Speed:	5500 rpm Grease
Roller Diameter:	5/8 in
Roller Width:	0.438 in
Series:	CR Inch Series
Stud Diameter:	1/4 in
Stud Length:	3/4 in
Thread Length:	5/16 in
Thread Size:	1/4-28
