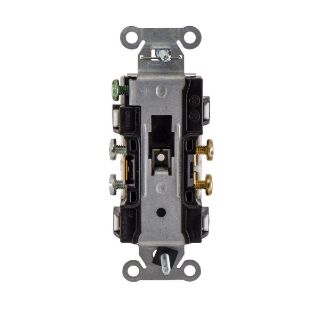

Picture of CR20WHI HWD
Actual Product May Vary From Image

CR20WHI HWD

Wiring Device-Kellems CR20WHI 1-Phase Duplex Grounding Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: CR20WHI
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
159 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1.87
This product has a minimum quantity of 10

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Standard

Alternate Supplier #

Grainger - 5Z835

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Grounding Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, White, 3.281 in H x 1.322 in W x 1.067 in D Dimensions

Standards

UL 498 | File No. E2186 Listed | UL 94-V-2 Flammability Rating | CSA C22.2 No. 42 Certified | NEMA WD1/WD5 Compliant | RoHS Compliant

Features

  • Withstands 2000 VAC dielectric voltage
  • Certified for current interrupting at full rated current
  • Easy access split circuit tab
  • Smooth face
  • Triple wipe contacts
  • 14 to 10 AWG solid or stranded copper conductor terminal accommodation
  • Terminals identified in accordance with UL 498 and CSA
  • Nylon base and top, 0.03 in brass power contacts, 0.04 in galvanized steel mounting strap, plated steel terminal screws, stainless steel automatic self-grounding staple, galvanized steel mounting screws
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Fork terminal capable
  • Traditional face
  • #8-32 brass multiple drive terminal screw
  • Traditional duplex receptacle
  • Indoor dry unless protected by additional means

Specifications

Amperage Rating:20 A
Color:White
Country of Origin:CN
Dimensions:1.32 x 0.83 x 3.28 in
Grade:Commercial/Specification
Horsepower:1 hp
Material:Composite/Thermoplastic
NEMA Rating:5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
